Specification

General Brand: KuKirin

Model: M5 Pro

Color: Black

Basic Specification Net weight: 36.2 kg

Unfolded size: 1300x640x1270 mm

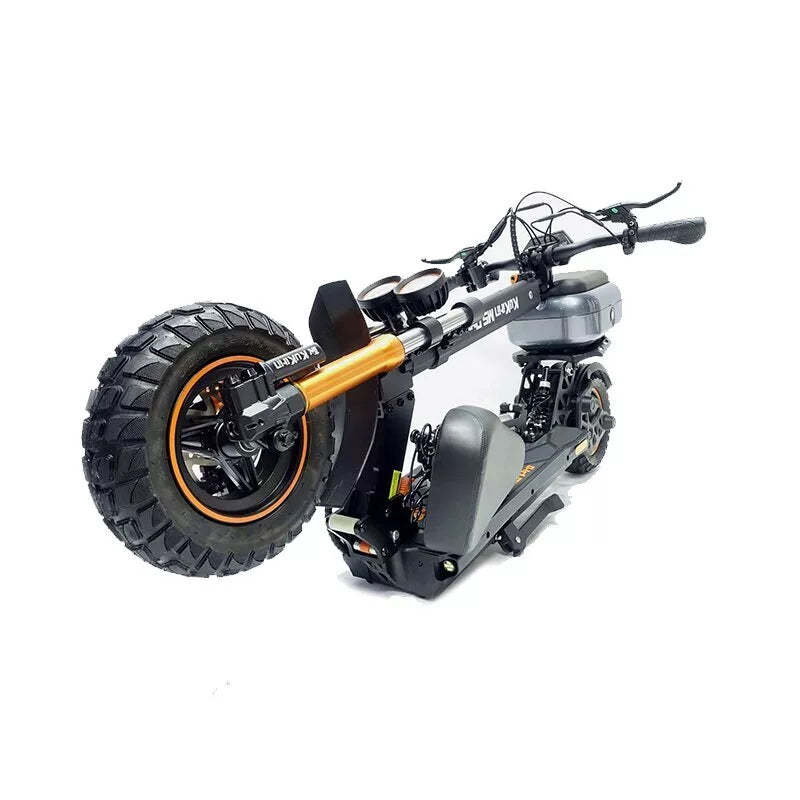

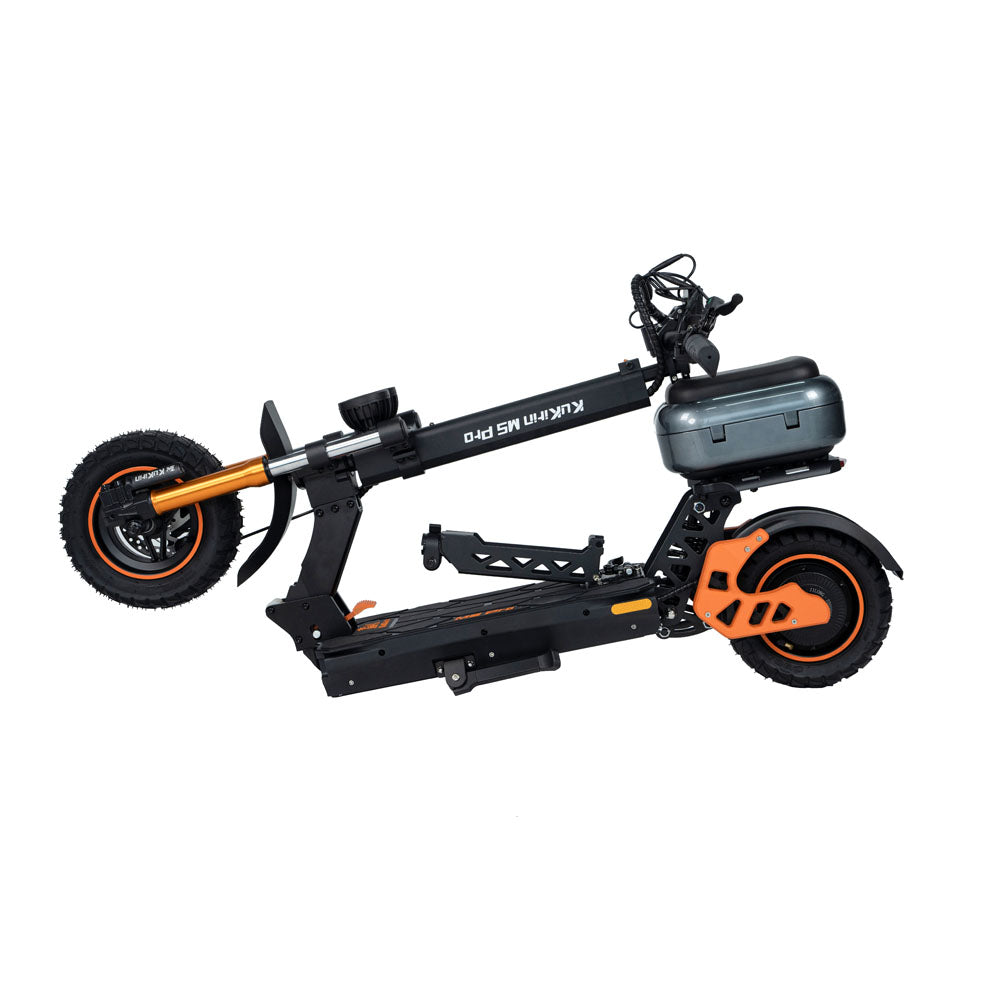

Folded size: 1280x640x505mm

Handlebar length: 600mm

Ride height: 145mm

Footrest size: 540×255 mm

Recommended rider height: 150-200cm (4’11”-6’7″)

Maximum load: 120 kg

Climb: 15°

Maximum speed: 52 km/h

Maximum range: 70 km

Speed levels: 29/42/52 km/h (level 1-3)

Waterproof level: IP54

Material: Aluminum Alloy

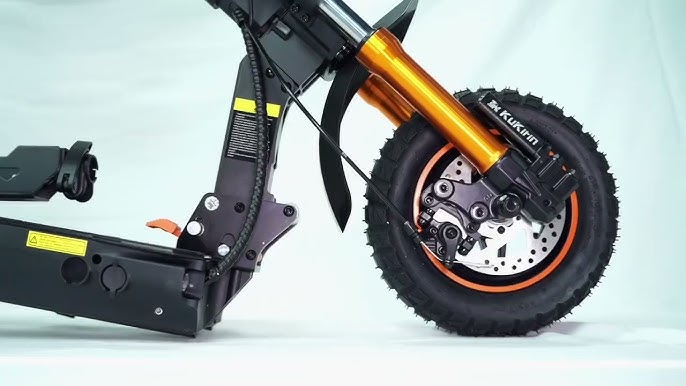

Braking System: Front & Rear Disc Brakes + Auto Power Off Disc Brake

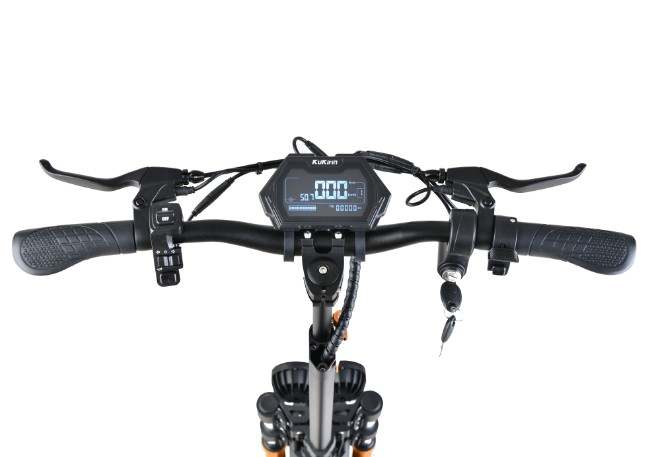

140 mm (external diameter) Motor Rated power and voltage: 1000 W, 48 V Maximum instantaneous power: 1200 W Maximum RPM: 1040 Maximum output torque: 30 Nm Suspension Four-link shock absorption Battery Capacity: 20Ah Voltage: 48V Charging time: 8-9h Power capacity: 960Wh Protection system: Yes Charger Input: 100-240V, 3A Output: 54.6, 2A Tire Size: 11″ (Front), 10″ (Rear) Type: pneumatic rubber tires Tire pressure: 50 psi (rear). Display Type: LCD Size: 75×135mm Contents: Speed, Voltage, Distance, Speed Level, Battery Level, Light, etc. Pack Size: 1315x290x520 mm Gross weight: 42.2 kg

Package List 1 x E-Scooter 1x User Manual 1x Charger 1 x Tool Kit Note: Maximum range is reached under the following conditions: 65 kg load, 26 degrees Celsius temperature, constant speed (level 2), on flat roads without strong wind. [caption id="attachment_5527" align="alignnone" width="1241"] #m5pro1[/caption] [caption id="attachment_5528" align="alignnone" width="1240"] #m5pro2[/caption] [caption id="attachment_5529" align="alignnone" width="1240"] #m5pro3[/caption] [caption id="attachment_5530" align="alignnone" width="1241"] #m5pro4[/caption] [caption id="attachment_5531" align="alignnone" width="1241"] #M5pro4[/caption] [caption id="attachment_5532" align="alignnone" width="1240"] #M5pro5[/caption]
